Rock Krawler Rockzilla Flat Belly Long-Arm Upgrade (I3 Front/DT Rear) For Jeep Wrangler LJ

Rock Krawler Rockzilla Flat Belly Long-Arm Upgrade (I3 Front/DT Rear) For Jeep Wrangler LJ

The Rock Krawler Suspension Rockzilla I3 Flat Belly Long Arm Upgrade System is a massive evolution to long-arm systems for LJ Wranglers. We led the way with the Revolutionary X-Factor Long-Arm design featuring the industry's first Independent 3-Link Front and Triangulated 4-Link Rear Suspension Design Ever! The X-Factor Long-Arm design has stood the test of time and has been mimicked by many other companies in its 20+ year history! How do we as an industry leader blow something out of the water that has done so well for so long? The answer is the all new LJ X Factor X2 Flat Belly Long-Arm Systems. The industry’s only full flat belly long-arm system where all the arms tuck up right inside the frame! The Rockzilla I3 Long Arm Upgrade is a mix of DIY and Full System form to work with alternate axles and allow you to position the axles forward and aft where ever you would like. No other manufacturer offers such a system. First, we send out all the mounts. You install the center flat belly skid system and put the mounts on the axles. Then you position the axles where you want them. Next, fill out the dimension table in the back of the instructions and we build the arms custom to your dimensions. No one but Rock Krawler offers this level of service for those of you wishing to get exactly what you want! The Rockzilla I3 X2 geometry is enhanced above and beyond our old X-Factor Long-Arm, adding more double triangulation to the rear for even better stability with our tried and true, but enhanced Independent 3 Link front Geometry. The lower control arms feature Adventure Series Joints to the frame side of the lower control arms and thus reducing overall system maintenance. The newer Pro-X Krawler Joints with the one piece BASF thermo-elastomer material round out the joints used in the system for an unbelievable 95 degrees of misalignment or more, available on each and every control arm in the system. No one can beat this combination of cross over angles, ground clearance gains, ride quality, tuned suspension performance, durability and our abuse proof lifetime warranty on all hard parts. The Rock Krawler Rockzilla I3 X2 Flat Belly Long Arm Upgrade is paving the way for future LJ Builds. When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail! Thank you for considering Rock Krawler Suspension.

System Benefits:

• Maintenance Free/ High Ability Control Arms Featuring our Award Winning Adventure Series Joints
• Full Flat-Belly Long-Arm System
• The Best Cross Over Angle Long-Arm System Available
• The Best On Road and Off Road Long-Arm Geometry Available
• Excellent Highway Ride and Handling
• High Misalignment Lower Control Arms
• Independent Front 3 Link Geometry
• Double Triangulated Rear 4 Link Geometry
• SET THE WHEEL BASE WHERE YOU WANT AND WE BUILD TO MEET YOUR NEEDS
• Lifetime Warranty Coverage

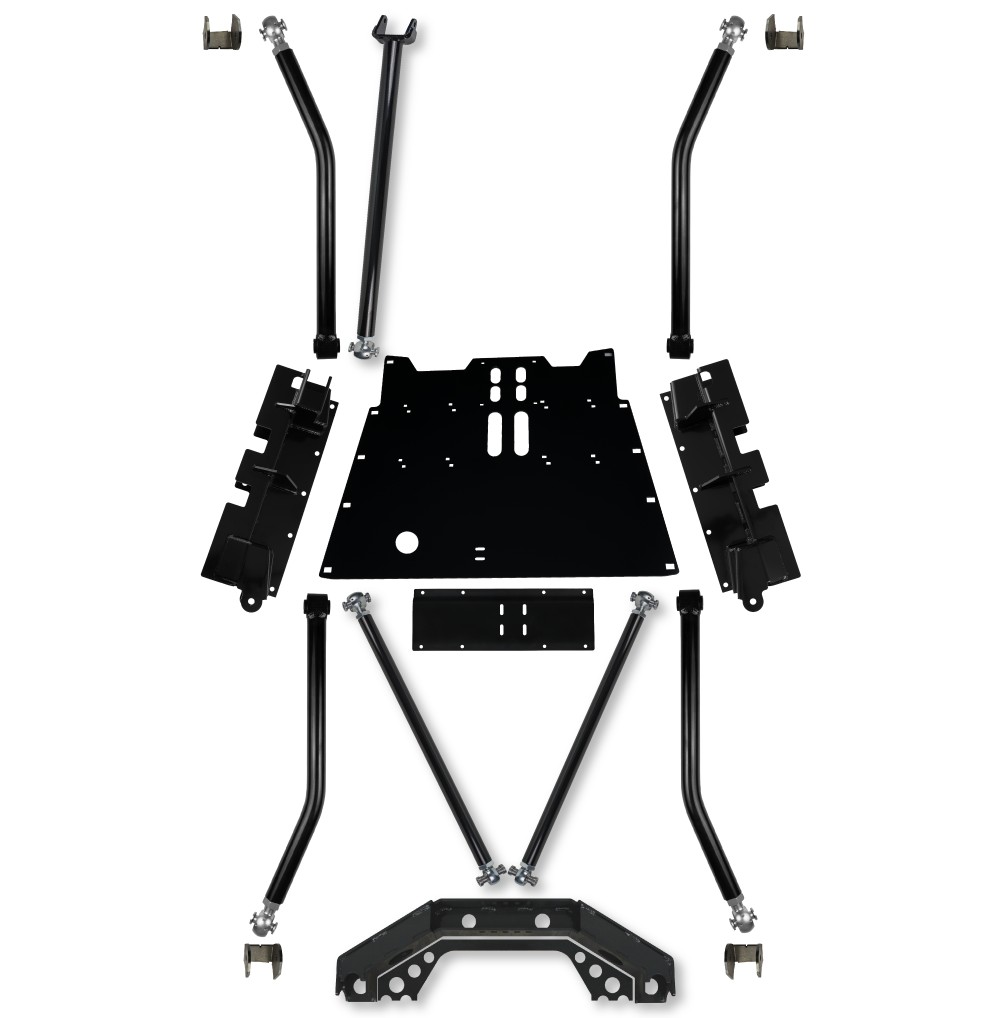

System includes:

• (4) High Misalignment/Adjustable Lower Control Arms
• (1) Adjustable Front Upper Control Arm
• (1) Skid Plate And Skid Plate Mounting Brackets
• (2) Rear Upper Triangulated 4 Link Arms
• (1) Rear Triangulated 4 Link Mounting Cradle/Axle Truss
• (4) Lower Control Arm Axle Mounts

General Notes:

• Highly Recommend Antirock Rear Sway Bar
• Any Axle Combination Acceptable.
• With long rear uppers, a custom cat back exhaust is required.
• 2003 TJ's equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel.
• Requires removal of the OEM rear upper control arm mounts off the rear axle.
• Requires Artec or Motobilt HD Body Mounts that raise the body 1.25” and a small motor mount lift or 1.5” Body Lift/Motor Mount Lift or Greater.
• Remember to combine suspension lift height and body lift height or body mount replacement and your total lift height to achieve your desired overall all tire clearance.
• 2 Part Process, We send out all the mounts, then build the arms custom to meet your needs.
