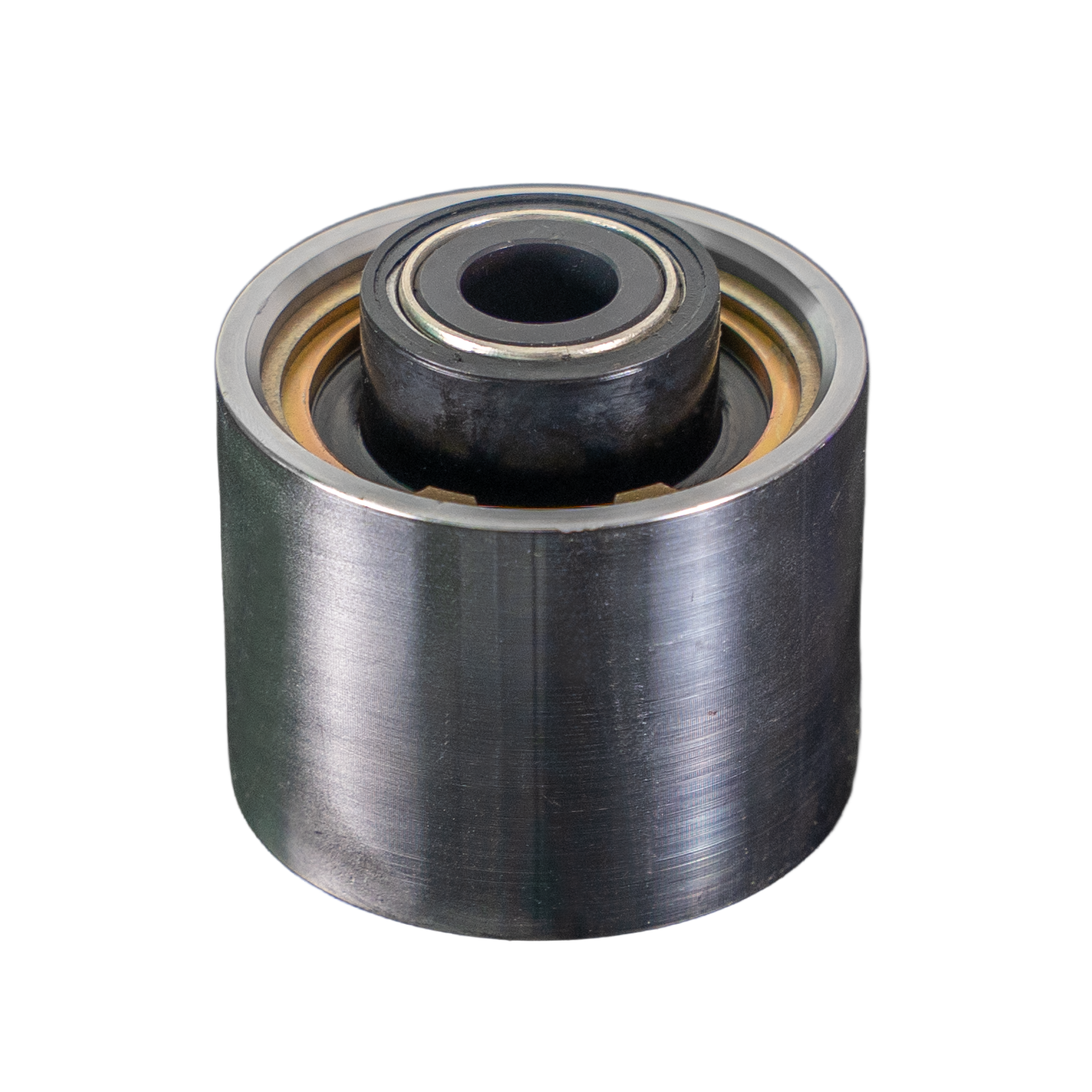

Rock Krawler Adventure Series Joints (Weldable)

Part #

Description

Common Fitment

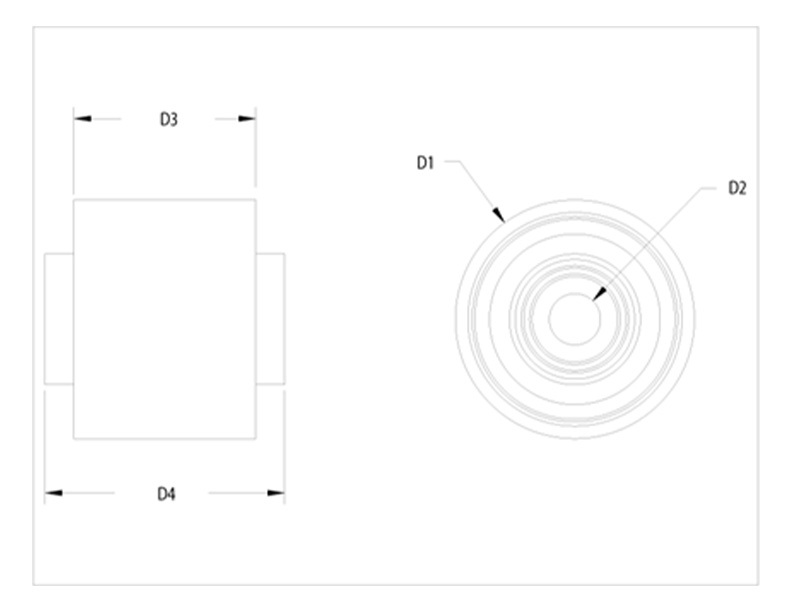

Dim 1

Dim 2

Dim 3

Dim 4

Joint Center Part #

RK07412W

JOINT, ADV. SERIES LOWER CONTROL ARM

TJ/LJ/JK/JL/XJ/ZJ Lower Arm

 2.563"

9/16"

 2.000"

 2.625"

RK07403A

RK07413W

JOINT, ADV. SERIES LOWER CONTROL ARM

JL/JK Lower Arm

 2.563"

5/8"

 2.000"

 2.625"

RK07404A

RK07415W

JOINT, ADV. SERIES FRONT UPPER CONTROL ARM

JK/JT/JL Front Upper Arm

 2.563"

1/2"

 1.563"

 2.000"

RK07411A

RK07417W

JOINT, ADV. SERIES REAR UPPER CONTROL ARM

JK/JL Rear Upper Arm

 2.563"

9/16"

 1.813"

 2.375"

RK07409A

RK08043W

JOINT, ADV. SERIES BRONCO TRACK BAR

Bronco

 2.563"

16mm

 1.563"

 55mm

RK08012A

RK08030W

JOINT, ADV. SERIES FRAME SIDE JOINT

Bronco Rear Upper Arm

 2.563"

16mm

 2.000"

 74mm

RK08006A

RK08247W

JOINT, ADV. SERIES FRAME/AXLE SIDE JOINT

Bronco Axle Side

 2.563"

16mm

 2.000"

 70mm

RK08009A

RK08979W

JOINT, ADV. SERIES REAR UPPER CONTROL ARM

Bronco Upper A Arm

 2.563"

14mm

 ------

 2.941"

RK08945A
