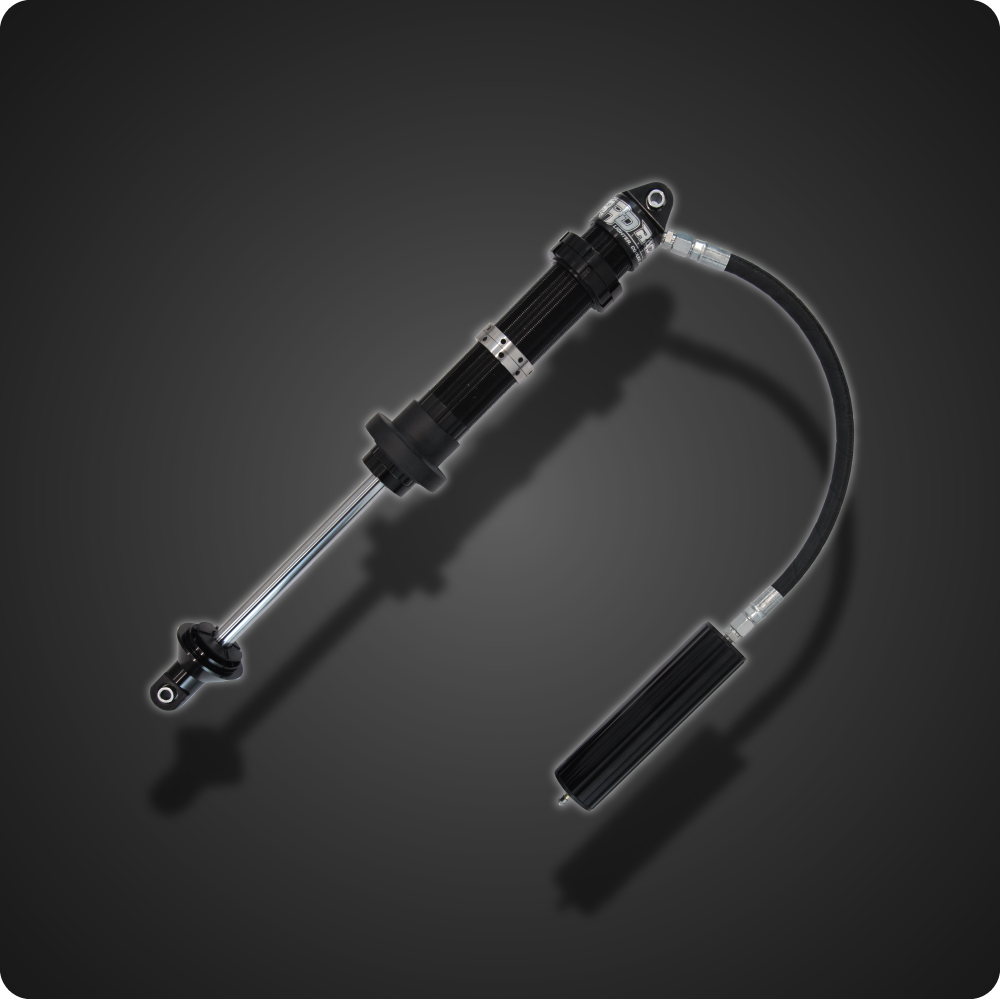

The RRD 2.625” Coilover Shock's fluted aluminum body gives the advantage of weight reduction without sacrificing strength. This not only makes this shock the lightest in its class, but it also provides a surface area greater than most 3” bodied shocks. The fluting provides the structure required to ensure the aluminum cylinders are as strong, if not stronger than their steel 2.5” counterparts. The shock bodies are also treated with a military grade hard anodized coating so you never have to worry about corrosion and it minimizes wear. Two DU bearing provides the bearing surface for the massive 1” 17-4 PH Stainless Steel Hard Chrome Plated and Polished Shaft. A military grade hard anodized billet aluminum valve circuit with multi-stage valving controls the dampening. Redundant sealing technology that utilizes Viton O-rings and seals keeping the shock oil where it belongs. The shock oil is formulated with a high viscosity index and sheer stability to control shock fade. The custom solid Teflon wear band minimizes shock body wear, even at extreme temperatures.
All these features combine to make the RRD 2.625” Remote Reservoir Coilover Shock a fraction of the weight of the competitions 2.5” steel body counterparts and cool twice as fast for fade resistant performance. All RRD Shocks come with a 6 month Warranty against defects in materials and workmanship.
Key Features:
- 2.625” O.D. Military Grade Hard Anodized Fluted Aluminum Shock Body
- 2.625” O.D. Military Grade Hard Anodized Fluted Aluminum Reservoir Body w/ Internal Floating Piston Charged with Argon
- Cooling Surface Area of a 3.0” Shock
- 1” 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
- Military Grade Hard Anodized Billet Aluminum Valve Circuit and Billet Machined Components
- Dual DU Shaft Bearings and Double Redundant Sealing Methods
- Dual Spring Rate Slider
- Adjustable Spring Lockout Collars (Transition Rings)
- Serviceable/Rebuildable/Revalveable
Notes:
- The standard valve circuit flow is based off 60/40 split similar to most other manufacturers.
- Bearings with ½” I.D. and mounting width options of 1.25”/1 7/16”/1 5/8” available.
- Why Argon for charging our shocks? Argon has a molecular size that is almost 3 times that of Nitrogen so it does not weep as fast so recharging is not as frequently required, but yet Argon is still readily available at most commercial gas suppliers.
- Most all direct fit applications feature 2 Stage Valve Stacks.
- For custom valved applications please contact us directly.
- Available in 8” to 16” of travel in 1” increments.
Available Shock Lengths:
|
Travel (Inches) |
Collapsed Length (Inches) |
Extended Length (Inches) |
|
8" |
16.4375" |
24.4375" |
|
9" |
17.4375" |
26.4375" |
|
10" |
18.4375" |
28.4375" |
|
11" |
19.4375" |
30.4375" |
|
12" |
20.4375" |
32.4375" |
|
13" |
21.4375" |
34.4375" |
|
14" |
22.4375" |
36.4375" |
|
15" |
23.4375" |
38.4375" |
|
16" |
24.4375" |
40.4375" |
